BaySerial Class Reference

Inheritance diagram for BaySerial:

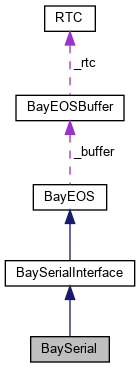

Collaboration diagram for BaySerial:

Public Member Functions
	BaySerial (HardwareSerial &serial, int timeout=1000, long baud=38400, uint8_t cts_pin=0)
int	available (void)
int	i_available (void)
void	begin (long baud)
void	flush (void)
void	end (void)
int	read (void)
size_t	write (uint8_t c)
Public Member Functions inherited from BaySerialInterface
uint8_t	sendPayload (void)
void	sendFrame (void)
uint8_t	readIntoPayload (int timeout=0)
void	sendTXBreak (void)
Public Member Functions inherited from BayEOS
	BayEOS (void)
uint8_t	sendError (const char *s)
uint8_t	sendMessage (const char *s)
uint8_t	createMessage (const char *s, uint8_t checksum=0, uint8_t frametype=BayEOS_Message)
uint8_t	createActionResponse (uint8_t key, uint8_t status)
void	startFrame (void)
void	startFrame (uint8_t type)
void	startOriginFrame (const char *o, uint8_t routed=0)
void	startDataFrame (uint8_t subtype=BayEOS_Float32le, uint8_t checksum=0)
void	startDataFrameWithOrigin (uint8_t subtype, const char *o, uint8_t checksum=0, uint8_t routed=0)
uint8_t	addChannelValue (float v, uint8_t channel_number=0)
uint8_t	addChannelValue (double v, uint8_t channel_number=0)
uint8_t	addChannelValue (long v, uint8_t channel_number=0)
uint8_t	addChannelValue (unsigned long v, uint8_t channel_number=0)
uint8_t	addChannelValue (int v, uint8_t channel_number=0)
uint8_t	addChannelValue (unsigned int v, uint8_t channel_number=0)
uint8_t	addChannelValue (int8_t v, uint8_t channel_number=0)
uint8_t	addChannelValue (uint8_t v, uint8_t channel_number=0)
uint8_t	addChannelValue (float v, const char *channel_label)
uint8_t	addChannelValue (double v, const char *channel_label)
uint8_t	addChannelValue (long v, const char *channel_label)
uint8_t	addChannelValue (unsigned long v, const char *channel_label)
uint8_t	addChannelValue (int v, const char *channel_label)
uint8_t	addChannelValue (unsigned int v, const char *channel_label)
uint8_t	addChannelValue (int8_t v, const char *channel_label)
uint8_t	addChannelValue (uint8_t v, const char *channel_label)
uint8_t	addChecksum (void)
uint8_t	validateChecksum (void)
void	startRoutedFrame (uint16_t sourceMyID, uint16_t sourcePANID, uint8_t rssi=0)
void	startDelayedFrame (unsigned long delay)
void	startDelayedSecondFrame (unsigned long delay)
void	startRF24Frame (uint8_t pipe)
void	startTimestampFrame (unsigned long timestamp)
void	startCommand (uint8_t cmd_api)
void	startCommandResponse (uint8_t cmd_api)
uint8_t	addToPayload (uint8_t b)
uint8_t	addToPayload (const void *p, uint8_t length)
uint8_t	addToPayload (const uint8_t *c)
uint8_t	addToPayload (const char *s)
uint8_t	addToPayload (float f)
uint8_t	addToPayload (unsigned long l)
uint8_t	addToPayload (long l)
uint8_t	addToPayload (int w)
uint8_t	addToPayload (uint16_t w)
uint8_t	getPayloadBytesLeft (void) const
uint8_t	getPayloadLength (void) const
uint8_t	getPacketLength (void) const
const uint8_t *	getPayload (void) const
uint8_t	getPayload (uint8_t index) const
uint8_t	sendOrBuffer (void)
uint8_t	sendFromBuffer (void)
uint8_t	writeToBuffer (void)
uint8_t	readFromBuffer (void)
uint8_t	readBinaryFromBuffer (unsigned long pos)
uint8_t	readBinaryFromBuffer (unsigned long pos, unsigned long end, unsigned long vpos)
void	setBuffer (BayEOSBuffer &buffer, uint16_t max_skip=0)

Protected Attributes
HardwareSerial *	_serial
Protected Attributes inherited from BaySerialInterface
bool	_escape
bool	_read_timeout
unsigned long	_start
uint16_t	_timeout
uint16_t	_current_timeout
uint8_t	_length
uint8_t	_checksumTotal
uint8_t	_api
uint8_t	_ack
uint8_t	_pos
uint8_t	_break
uint8_t	_cts_pin =0
uint8_t	_retries =0
long	_baud

Additional Inherited Members
Public Attributes inherited from BayEOS
uint8_t	_payload [BayEOS_MAX_PAYLOAD]
uint8_t	_next
uint8_t	_success
uint8_t	_failure_counter
uint16_t	_max_skip
uint16_t	_skip_counter
BayEOSBuffer *	_buffer
Protected Member Functions inherited from BaySerialInterface
uint8_t	readPacket (uint8_t type=API_DATA, int timeout=0)
void	sendByte (uint8_t b, bool escape)
uint8_t	readByte (bool escape)
void	sendAck (uint8_t b)

Constructor & Destructor Documentation

BaySerial()

BaySerial::BaySerial	(	HardwareSerial &	serial,
		int	timeout = 1000,
		long	baud = 38400,
		uint8_t	cts_pin = 0
	)

Constructor

Member Function Documentation

available()

int BaySerial::available ( void  )

virtual

Has RX-data to read Has to be overwritten by implementation

Reimplemented from BayEOS.

---

The documentation for this class was generated from the following files:

• BayEOS-Arduino/libraries/BayEOS/BaySerial.h
• BayEOS-Arduino/libraries/BayEOS/BaySerial.cpp
