#include <XBee.h>

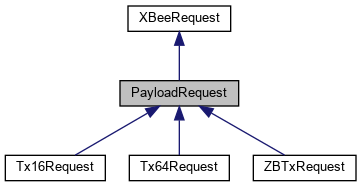

Inheritance diagram for PayloadRequest:

Public Member Functions
	PayloadRequest (uint8_t apiId, uint8_t frameId, uint8_t *payload, uint8_t payloadLength)

uint8_t *	getPayload ()

void	setPayload (uint8_t *payloadPtr)

uint8_t	getPayloadLength ()

void	setPayloadLength (uint8_t payloadLength)

Public Member Functions inherited from XBeeRequest
	XBeeRequest (uint8_t apiId, uint8_t frameId)

void	setFrameId (uint8_t frameId)

uint8_t	getFrameId ()

uint8_t	getApiId ()

virtual uint8_t	getFrameData (uint8_t pos)=0

virtual uint8_t	getFrameDataLength ()=0

Additional Inherited Members
Protected Member Functions inherited from XBeeRequest
void	setApiId (uint8_t apiId)

Detailed Description

All TX packets that support payloads extend this class

Definition at line 778 of file XBee.h.

Member Function Documentation

◆ getPayload()

uint8_t * PayloadRequest::getPayload ( void )

Returns the payload of the packet, if not null

Definition at line 799 of file XBee.cpp.

◆ getPayloadLength()

uint8_t PayloadRequest::getPayloadLength ( void )

Returns the length of the payload array, as specified by the user.

Definition at line 807 of file XBee.cpp.

◆ setPayload()

void PayloadRequest::setPayload ( uint8_t * payloadPtr )

Sets the payload array

Definition at line 803 of file XBee.cpp.

◆ setPayloadLength()

void PayloadRequest::setPayloadLength ( uint8_t payloadLength )

Sets the length of the payload to include in the request. For example if the payload array is 50 bytes and you only want the first 10 to be included in the packet, set the length to 10. Length must be <= to the array length.

Definition at line 811 of file XBee.cpp.

The documentation for this class was generated from the following files:

libraries/BayXBee/XBee.h
libraries/BayXBee/XBee.cpp
