#include <XBee.h>

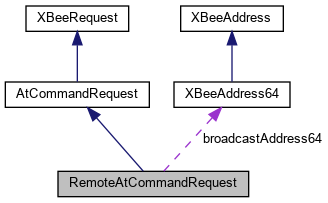

Inheritance diagram for RemoteAtCommandRequest:

Public Member Functions
	RemoteAtCommandRequest (uint16_t remoteAddress16, uint8_t command, uint8_t commandValue, uint8_t commandValueLength)

	RemoteAtCommandRequest (uint16_t remoteAddress16, uint8_t *command)

	RemoteAtCommandRequest (XBeeAddress64 &remoteAddress64, uint8_t command, uint8_t commandValue, uint8_t commandValueLength)

	RemoteAtCommandRequest (XBeeAddress64 &remoteAddress64, uint8_t *command)

uint16_t	getRemoteAddress16 ()

void	setRemoteAddress16 (uint16_t remoteAddress16)

XBeeAddress64 &	getRemoteAddress64 ()

void	setRemoteAddress64 (XBeeAddress64 &remoteAddress64)

bool	getApplyChanges ()

void	setApplyChanges (bool applyChanges)

uint8_t	getFrameData (uint8_t pos)

uint8_t	getFrameDataLength ()

Public Member Functions inherited from AtCommandRequest
	AtCommandRequest (uint8_t *command)

	AtCommandRequest (uint8_t command, uint8_t commandValue, uint8_t commandValueLength)

uint8_t *	getCommand ()

void	setCommand (uint8_t *command)

uint8_t *	getCommandValue ()

void	setCommandValue (uint8_t *command)

uint8_t	getCommandValueLength ()

void	setCommandValueLength (uint8_t length)

void	clearCommandValue ()

Public Member Functions inherited from XBeeRequest
	XBeeRequest (uint8_t apiId, uint8_t frameId)

void	setFrameId (uint8_t frameId)

uint8_t	getFrameId ()

uint8_t	getApiId ()

Static Public Attributes
static XBeeAddress64	broadcastAddress64 = XBeeAddress64(0x0, BROADCAST_ADDRESS)

Additional Inherited Members
Protected Member Functions inherited from XBeeRequest
void	setApiId (uint8_t apiId)

Detailed Description

Represents an Remote AT Command TX packet The command is used to configure a remote XBee radio

Definition at line 952 of file XBee.h.

Constructor & Destructor Documentation

◆ RemoteAtCommandRequest() [1/4]

RemoteAtCommandRequest::RemoteAtCommandRequest	(	uint16_t	remoteAddress16,
		uint8_t *	command,
		uint8_t *	commandValue,
		uint8_t	commandValueLength
	)

Creates a RemoteAtCommandRequest with 16-bit address to set a command. 64-bit address defaults to broadcast and applyChanges is true.

Definition at line 1117 of file XBee.cpp.

◆ RemoteAtCommandRequest() [2/4]

RemoteAtCommandRequest::RemoteAtCommandRequest	(	uint16_t	remoteAddress16,
		uint8_t *	command
	)

Creates a RemoteAtCommandRequest with 16-bit address to query a command. 64-bit address defaults to broadcast and applyChanges is true.

Definition at line 1124 of file XBee.cpp.

◆ RemoteAtCommandRequest() [3/4]

RemoteAtCommandRequest::RemoteAtCommandRequest	(	XBeeAddress64 &	remoteAddress64,
		uint8_t *	command,
		uint8_t *	commandValue,
		uint8_t	commandValueLength
	)

Creates a RemoteAtCommandRequest with 64-bit address to set a command. 16-bit address defaults to broadcast and applyChanges is true.

Definition at line 1131 of file XBee.cpp.

◆ RemoteAtCommandRequest() [4/4]

RemoteAtCommandRequest::RemoteAtCommandRequest	(	XBeeAddress64 &	remoteAddress64,
		uint8_t *	command
	)

Creates a RemoteAtCommandRequest with 16-bit address to query a command. 16-bit address defaults to broadcast and applyChanges is true.

Definition at line 1139 of file XBee.cpp.

Member Function Documentation

◆ getFrameData()

uint8_t RemoteAtCommandRequest::getFrameData ( uint8_t pos )

virtual

Starting after the frame id (pos = 0) and up to but not including the checksum Note: Unlike Digi's definition of the frame data, this does not start with the API ID. The reason for this is the API ID and Frame ID are common to all requests, whereas my definition of frame data is only the API specific data.

Reimplemented from AtCommandRequest.

Definition at line 1171 of file XBee.cpp.

◆ getFrameDataLength()

uint8_t RemoteAtCommandRequest::getFrameDataLength ( )

virtual

Returns the size of the api frame (not including frame id or api id or checksum).

Reimplemented from AtCommandRequest.

Definition at line 1203 of file XBee.cpp.

The documentation for this class was generated from the following files:

libraries/BayXBee/XBee.h
libraries/BayXBee/XBee.cpp
