#include <XBee.h>

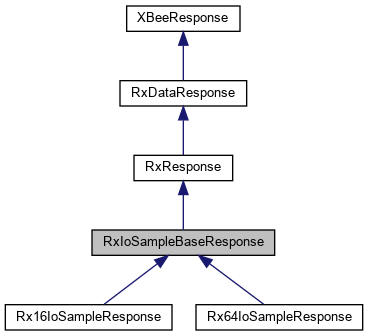

Inheritance diagram for RxIoSampleBaseResponse:
Collaboration diagram for RxIoSampleBaseResponse:
Public Member Functions | |
| uint8_t | getSampleSize () |
| bool | containsAnalog () |
| bool | containsDigital () |
| bool | isAnalogEnabled (uint8_t pin) |
| bool | isDigitalEnabled (uint8_t pin) |
| uint16_t | getAnalog (uint8_t pin, uint8_t sample) |
| bool | isDigitalOn (uint8_t pin, uint8_t sample) |
| uint8_t | getSampleOffset () |
 Public Member Functions inherited from RxResponse | |
| uint8_t | getRssi () |
| uint8_t | getOption () |
| bool | isAddressBroadcast () |
| bool | isPanBroadcast () |
| uint8_t | getDataLength () |
| uint8_t | getDataOffset () |
| virtual uint8_t | getRssiOffset ()=0 |
| Public Member Functions inherited from RxDataResponse | |
| uint8_t | getData (int index) |
| uint8_t * | getData () |
| Public Member Functions inherited from XBeeResponse | |
| XBeeResponse () | |
| uint8_t | getApiId () |
| void | setApiId (uint8_t apiId) |
| uint8_t | getMsbLength () |
| void | setMsbLength (uint8_t msbLength) |
| uint8_t | getLsbLength () |
| void | setLsbLength (uint8_t lsbLength) |
| uint8_t | getChecksum () |
| void | setChecksum (uint8_t checksum) |
| uint8_t | getFrameDataLength () |
| void | setFrameData (uint8_t *frameDataPtr) |
| uint8_t * | getFrameData () |
| void | setFrameLength (uint8_t frameLength) |
| uint16_t | getPacketLength () |
| void | reset () |
| void | init () |
| void | getZBTxStatusResponse (XBeeResponse &response) |
| void | getZBRxResponse (XBeeResponse &response) |
| void | getZBRxIoSampleResponse (XBeeResponse &response) |
| void | getTxStatusResponse (XBeeResponse &response) |
| void | getRx16Response (XBeeResponse &response) |
| void | getRx64Response (XBeeResponse &response) |
| void | getRx16IoSampleResponse (XBeeResponse &response) |
| void | getRx64IoSampleResponse (XBeeResponse &response) |
| void | getAtCommandResponse (XBeeResponse &responses) |
| void | getRemoteAtCommandResponse (XBeeResponse &response) |
| void | getModemStatusResponse (XBeeResponse &response) |
| bool | isAvailable () |
| void | setAvailable (bool complete) |
| bool | isError () |
| uint8_t | getErrorCode () |
| void | setErrorCode (uint8_t errorCode) |
Additional Inherited Members | |
| Protected Attributes inherited from XBeeResponse | |
| uint8_t * | _frameDataPtr |
Detailed Description
Represents a Series 1 RX I/O Sample packet
Member Function Documentation
◆ getAnalog()
| uint16_t RxIoSampleBaseResponse::getAnalog | ( | uint8_t | pin, |
| uint8_t | sample | ||
| ) |
Returns the 10-bit analog reading of the specified pin. Valid pins include ADC:0-5. Sample index starts at 0
◆ getSampleSize()
| uint8_t RxIoSampleBaseResponse::getSampleSize | ( | ) |
Returns the number of samples in this packet
◆ isAnalogEnabled()
| bool RxIoSampleBaseResponse::isAnalogEnabled | ( | uint8_t | pin | ) |
Returns true if the specified analog pin is enabled
◆ isDigitalEnabled()
| bool RxIoSampleBaseResponse::isDigitalEnabled | ( | uint8_t | pin | ) |
Returns true if the specified digital pin is enabled
◆ isDigitalOn()
| bool RxIoSampleBaseResponse::isDigitalOn | ( | uint8_t | pin, |
| uint8_t | sample | ||
| ) |
Returns true if the specified pin is high/on. Valid pins include DIO:0-8. Sample index starts at 0
The documentation for this class was generated from the following files:
- BayEOS-Arduino/libraries/BayEOS/XBee.h
- BayEOS-Arduino/libraries/BayEOS/XBee.cpp
